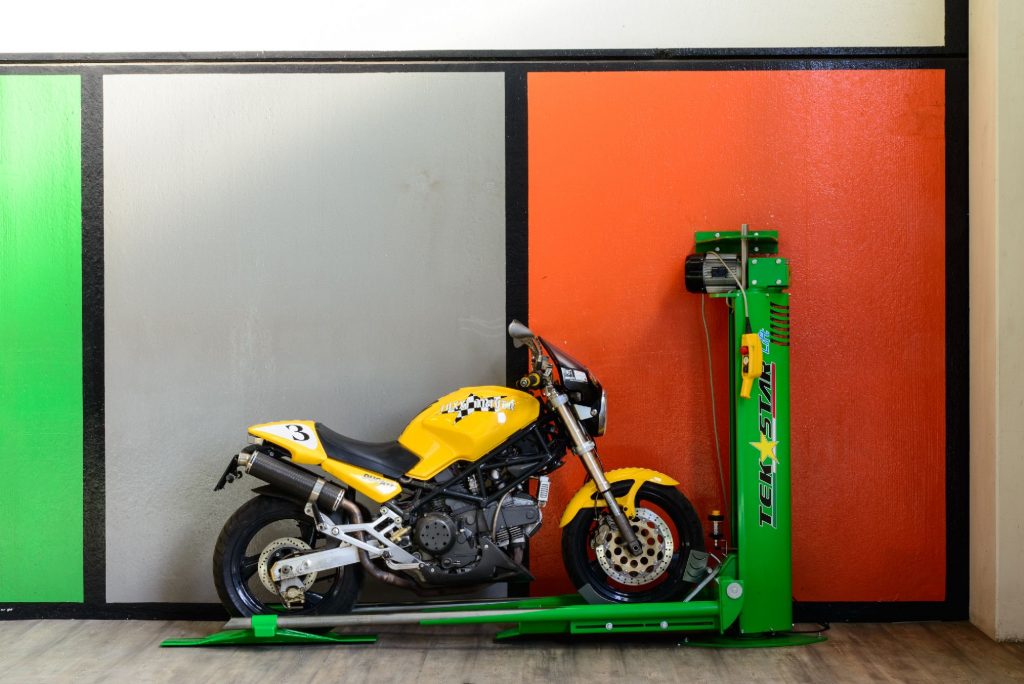

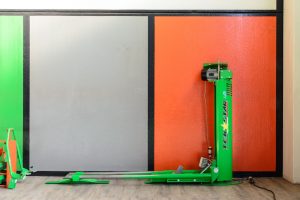

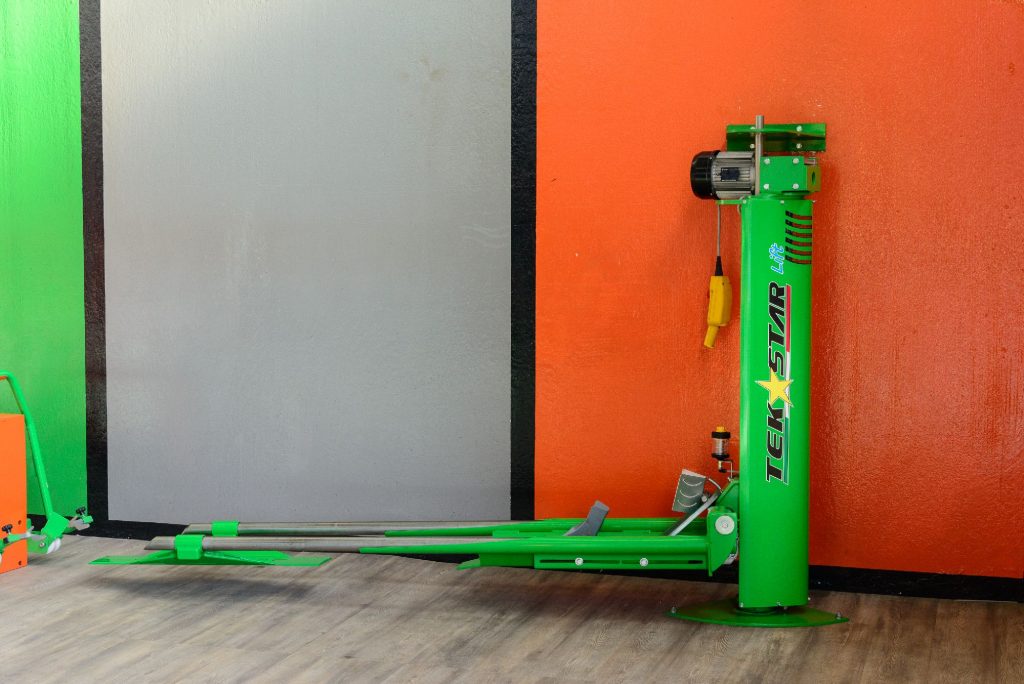

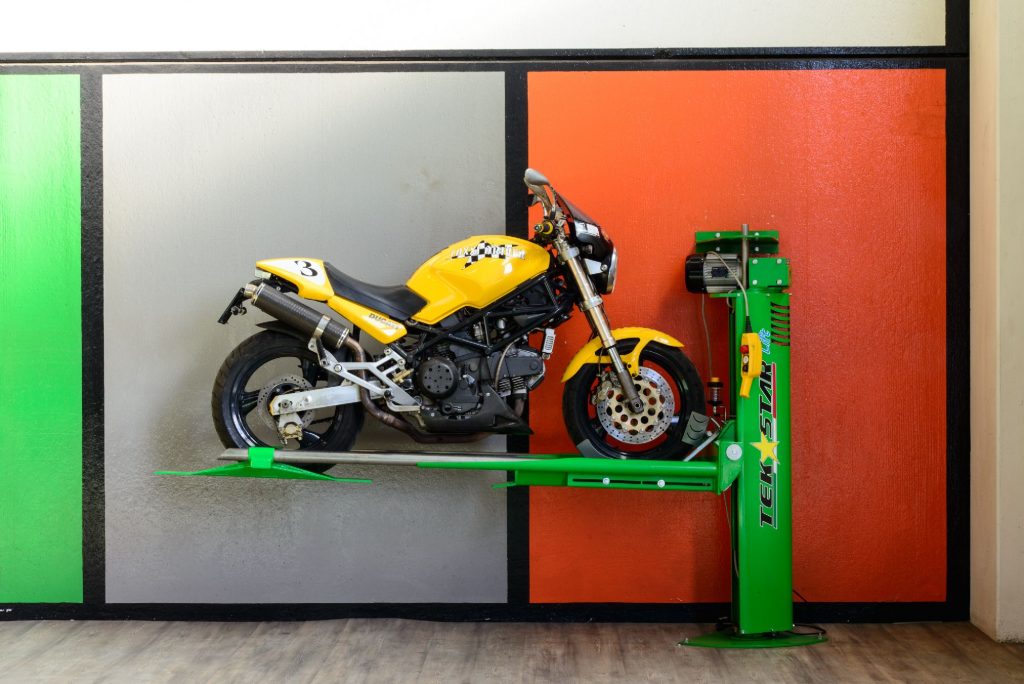

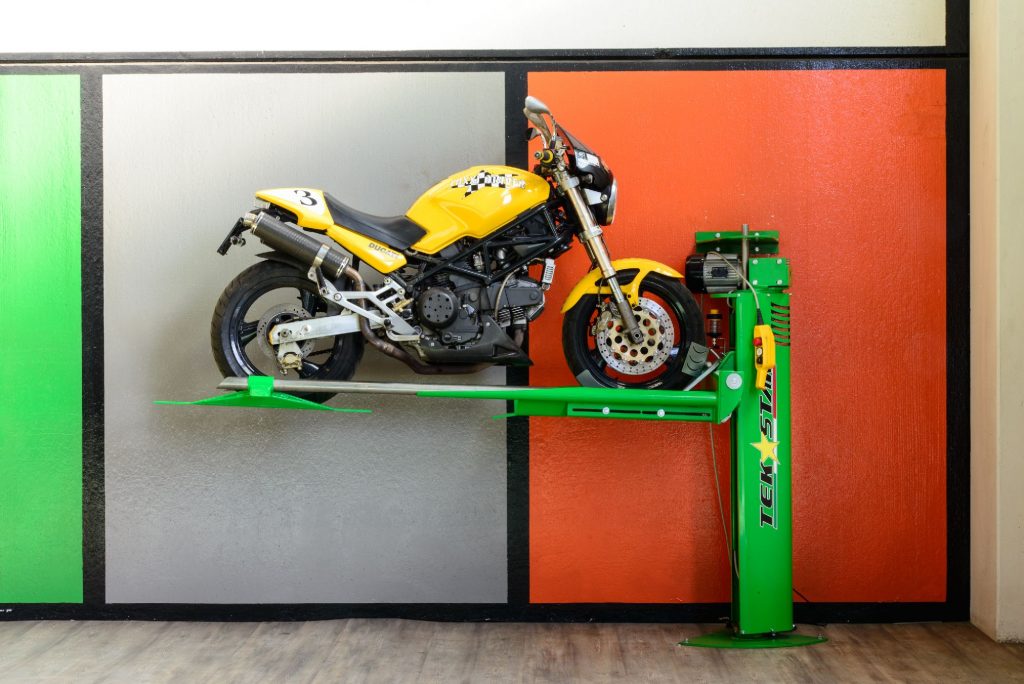

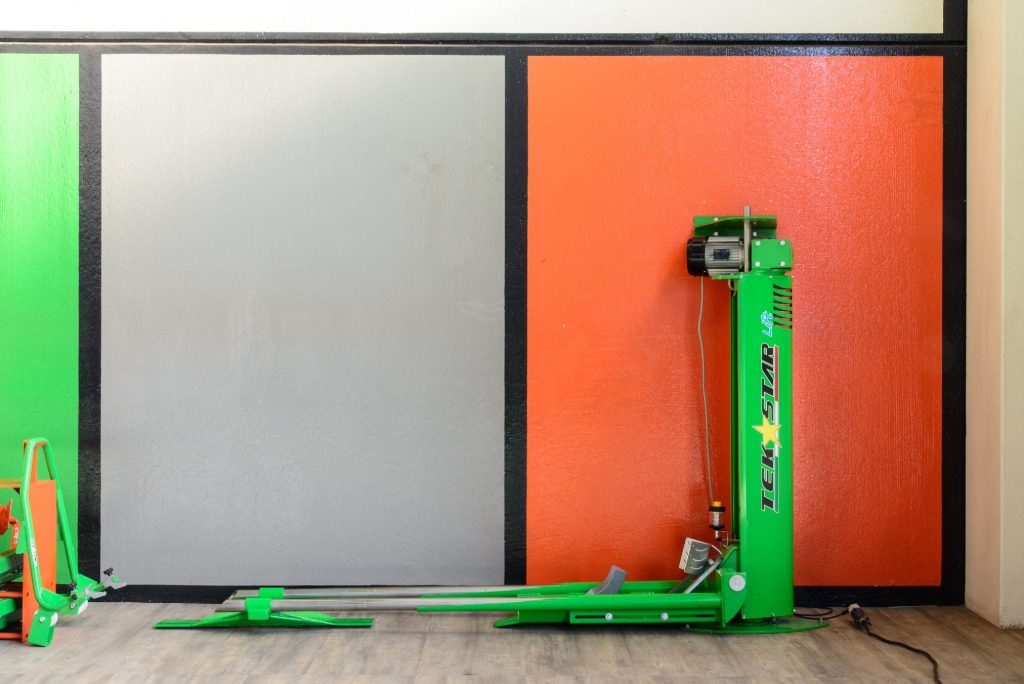

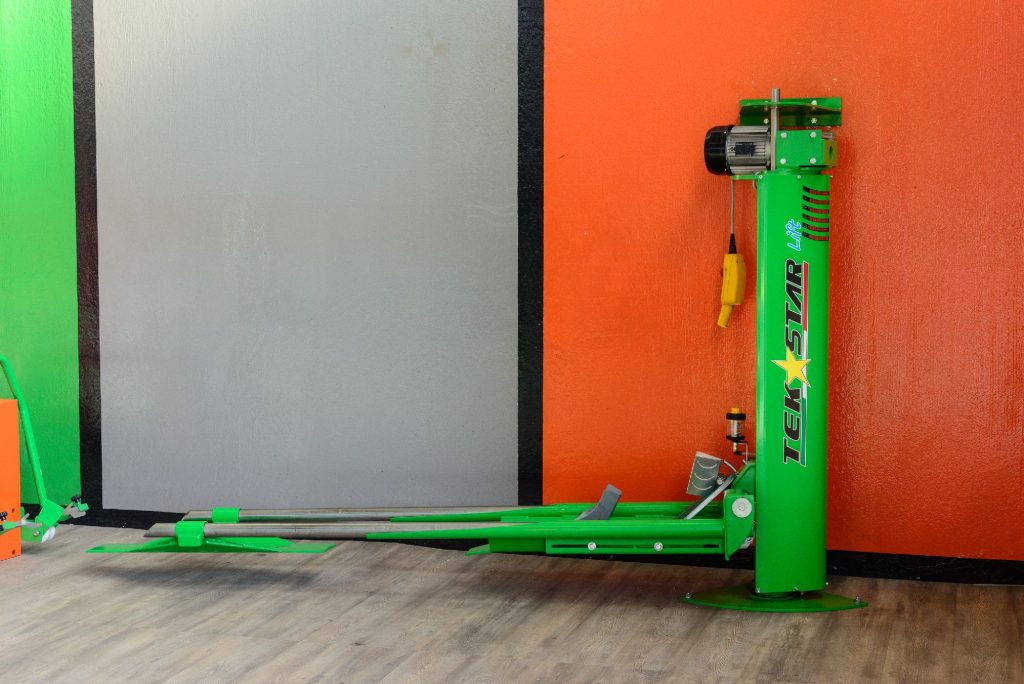

Space-saving, single column electric worm gear lift for motorcycles, foldable and closable at 180°. Named as a lifter or parking for small garages capable of superimposing the motorcycle to the car, with self-levelling cantilever weight system PATENTED
* Dead man controls, 24V
* Electric safeties
* Wall installation
* 180° column rotation
* 180° rotation of the platform
Technical Data:
Standard:
Electric Operation
Capacity 500Kg
Minimum height 0 mm
Lifting height 1000 mm
Ascent-Descent 30/30 sec.
Weight 220Kg
Versions:
With motor 220V 2,2 Kw 50Hz With motor 380V 2,2 Kw 50 Hz

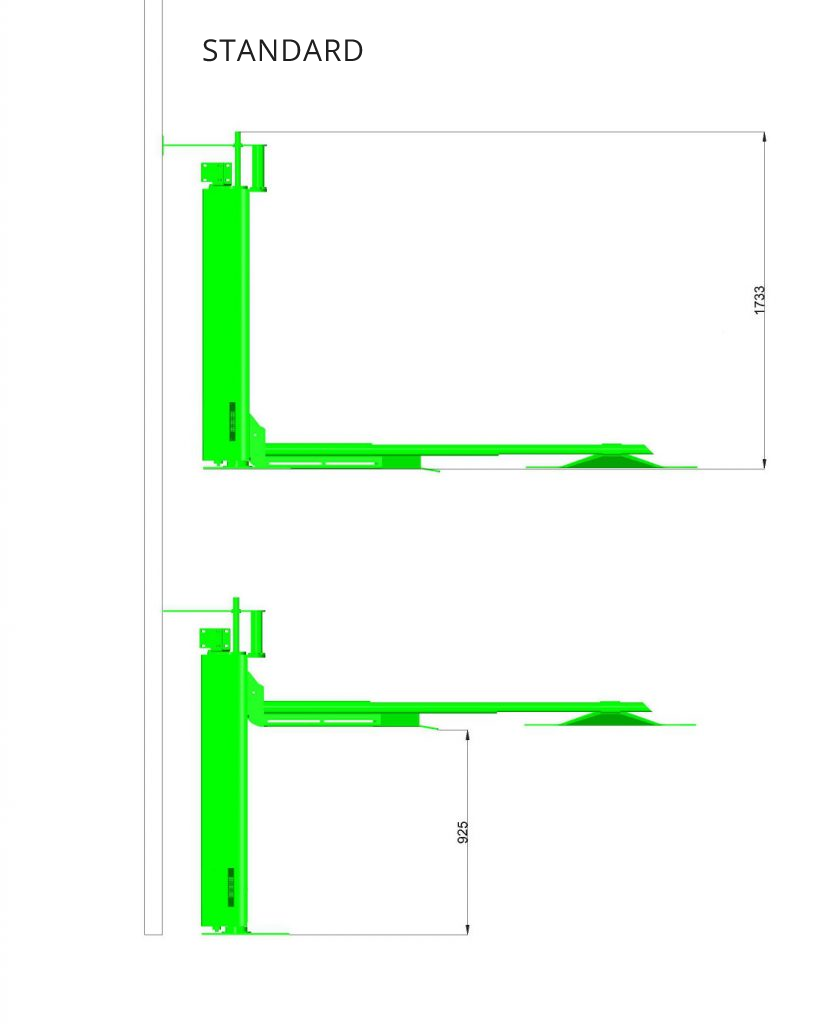

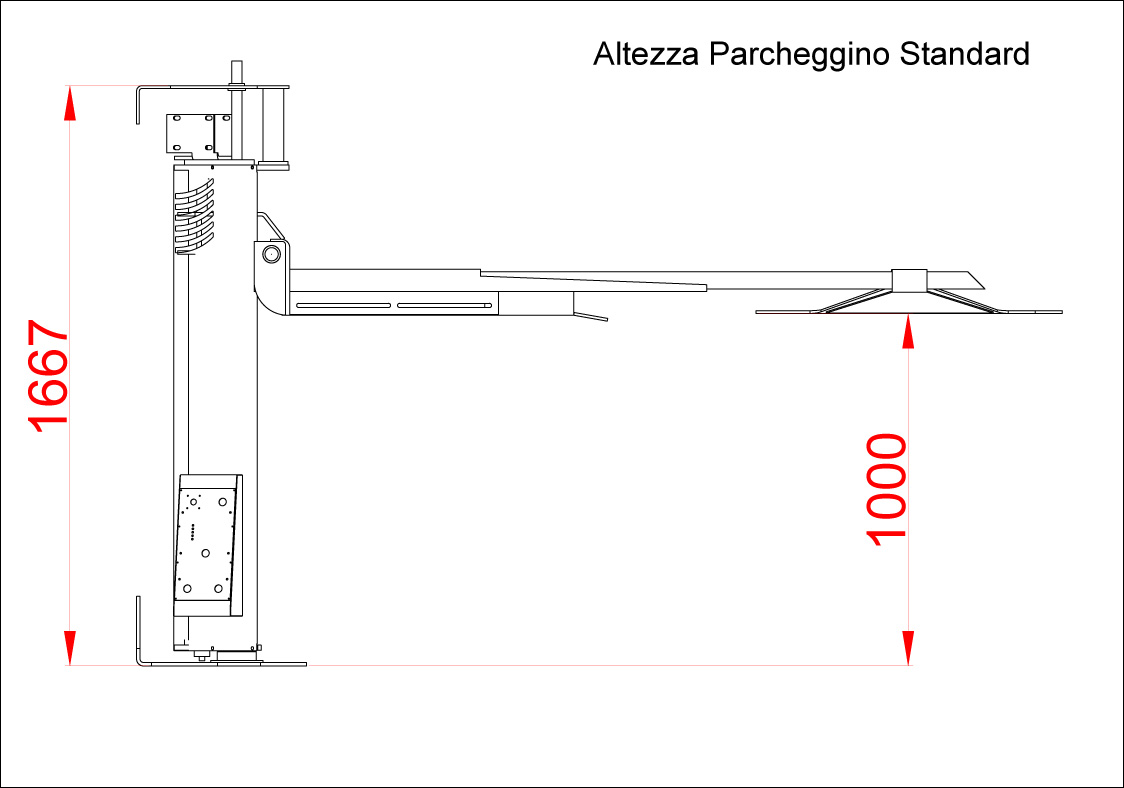

Standard: increase of height: 925 mm

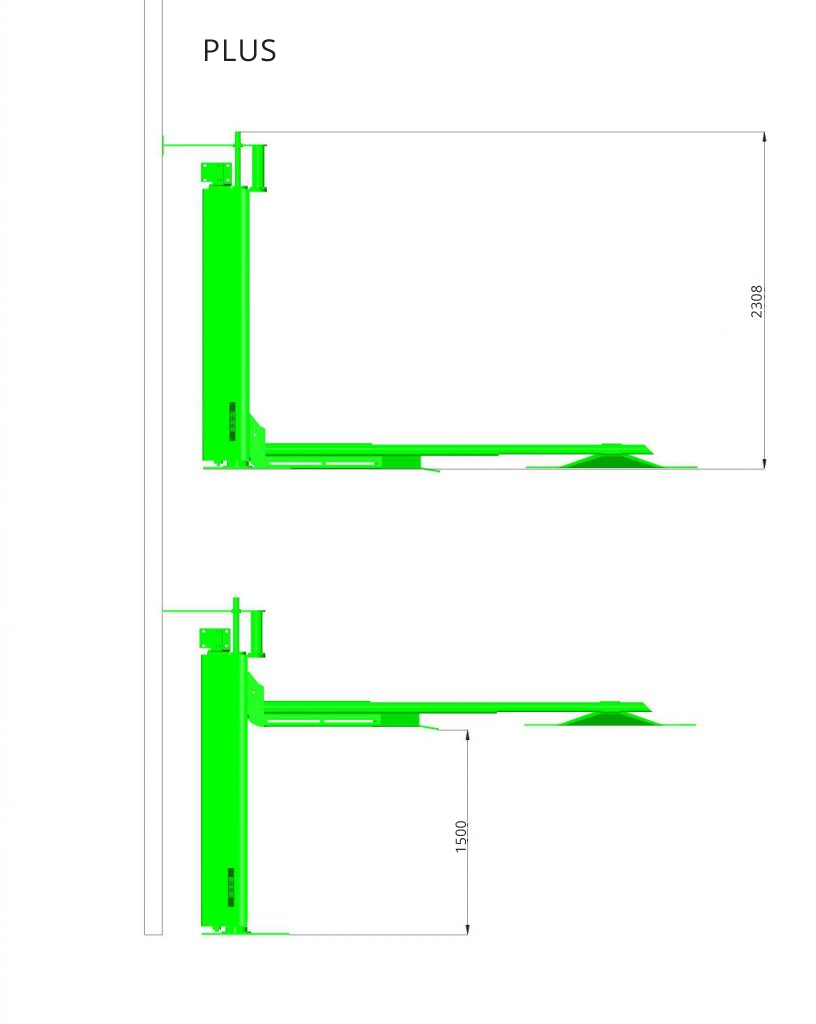

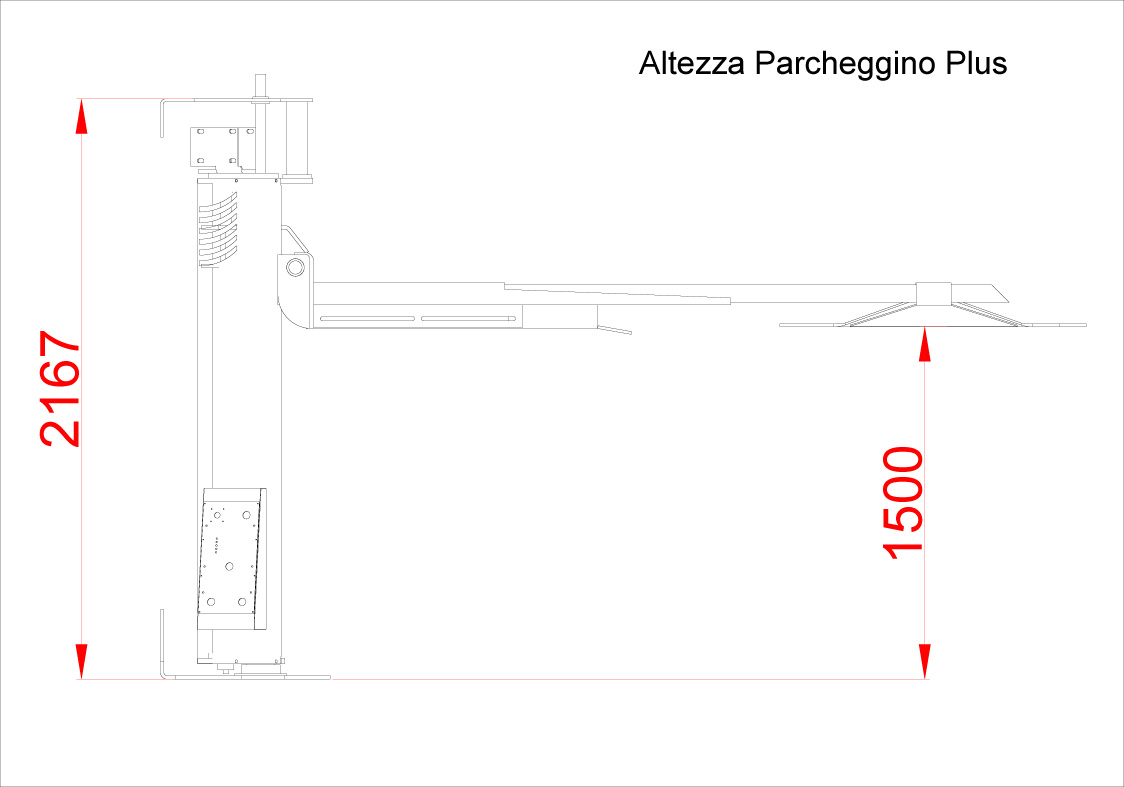

Plus: increase of height: 1500 mm
Standard equipment
* Front footboard with wheel stop
* Rear footboard
Accessories
* Front wheel lift stand
* Rear wheel stand
* Trolley for platforms and wheel stands
All our products are CE certified
